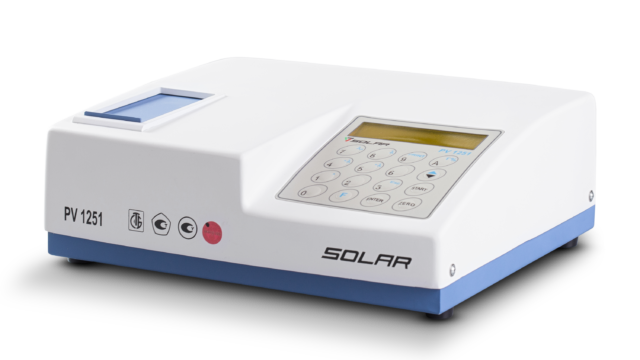

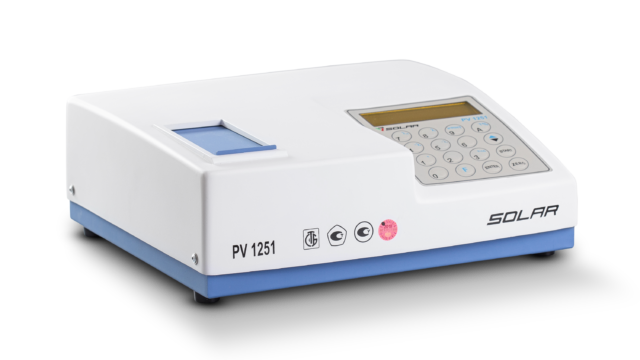

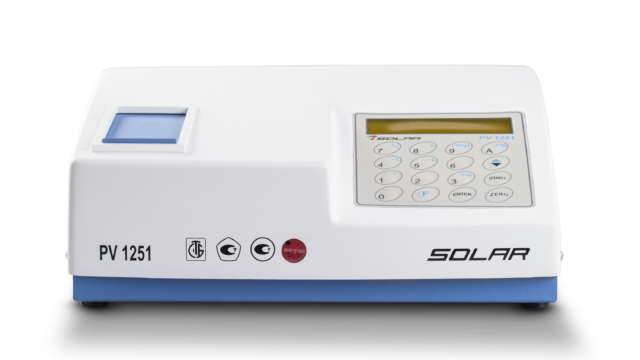

Spectrophotometer

PV1251C model

The universal spectrophotometer with wide scope: chemistry, power engineering, ecology, water-supply and other fields of industry. It is suitable also for routine researches, and for scientific operation

Any techniques
Different types of cells (including — CPP)
Convenient construction of cell section
Operates as with the computer, and autonomous
High accuracy of measurements

Any modes

The spectrophotometer PV1251C is open system, the user can independently select and program necessary modes (to 100 modes)

Different types of cells

It is possible to use standard cells and CPP cells (with length of optical way from 5 up to 50 mm)

Casing

From fiberglass. It is painted with chemically resistant color

Convenient at operation

The spectrophotometer "SOLAR" is convenient for working by the laboratory assistant. Convenient construction of cells separation: the cover is removed by the slider principle - it is conveniently to remove cells. It is conveniently to operate in standalone mode (without connection of the computer) thanks to the big built-in keypad and the informative LED screen where hints are displayed

Connection to the computer

Expands possibilities of mathematical processing of results, allows to process ranges, to create and save databases, etc.

Convenient software

High accuracy of measurements

Existence of the double monochromatic device provides the minimum level of the hindering radiation that guarantees high accuracy of measurements

Delivery set

Spectrophotometer PV1251C
Set of polystyrene one-use macro (1 ml) or semi-micro (0,4 ml) cells - 100 pieces
The program for operation with computer

By the additional order

Glass standard cells or CPP with length of optical way 5, 10, 20, 30, 50 mm
Polystyrene one-use cells with length of optical way 10 mm (a set of 100 pieces)
USB-COM adapter
Computer
Printer

State registry SI of RB No. 14324

State registry SI of the Russian Federation No. 16361-12

State registry SI UKE of UA-MI/3p-219-2000

Measuring functions
Program

In case of autonomous operation (without PC)

Measurement of optical density
Measurement of transmission coefficient
Determination of substance concentration in the researched test according to factor, to the known concentration in the standard, according to the diagram
Kinetic measurements
Measurement of concentration under one and two lengths of waves

The "Spectrum" program in case of connection to the computer (with the PC)

Measurement of absorption and transmission on the fixed lengths of waves
Measurement of absorption and transmission spectrum
Concentration measurement by a single-wave method, 2nd - 3rd - wave method, using:
a) factor
b) calibration under one point
c) multipoint gage curve
Kinetic measurements on one, two, three way lengths.

Automatic scale setting
Creating databases and working with them
Creating, viewing and editing techniques
Spectrum Calculator
Mathematical actions and processing of spectra (addition, division, subtraction, multiplication, finding the maximum and minimum in the spectrum, finding the area under the graph, the mean square deviation, raising the spectrum into a square, etc.)
Work with the entire spectrum, or with a separately selected band
Working with the application MatLab7

Light source	halogen lamp
Monochromatic device	double, with diffraction grids 1200 pcs/mm
Calibration on wave length	automatic at switching
Range of wave length	315 - 1100 nm
Accuracy of wavelength installation	+- 1 nm
Reproducibility of installation wavelength	+- 0,5 nm
The allocated spectral interval	5 nm
Diffused light	no more than 0,05% of T for 340 nanometers
Detector	silicon photo diode
Photometric range	- 0,301... 3,000 B, 0,1...200% T
Fotometry error	1 %
Drift of indications	no more than +- 0,002 B per hour
Cell section	not thermostatically controlled, cells with external sizes to 52,5х12,5х45 mm, with length of optical way up to 50 mm
Display of data	PC digital display / monitor
Connection to the personal computer	RS232 or via the USB-COM adapter
Energy consumption	230 (+-10%) V, 50 Hz, 80 BA
Dimensions	325 x 295 x 115 mm
Weight	8,5 kg

: № 10033-10036

: Кюветы КФК

№	Cell type	Length of optical way , mm	Spectral range, mm	Internal sizes, mm	Thickness of walls, mm	Packing, pc
10033	Glass cells	10	From 340 nm	10х10х43	1,25	1
10034	Glass cells	20	From 340 nm	20х10х43	1,25	1
10035	Glass cells	30	From 340 nm	30х10х43	1,25	1
10036	Glass cells	50	From 340 nm	50х10х43	1,25	1
---	FCC glass cells	10	From 340 nm	10х18х37	3	1
---	FCC glass cells	20	From 340 nm	20х18х37	3	1
---	FCC glass cells	30	From 340 nm	30х18х37	3	1
---	FCC glass cells	50	From 340 nm	50х18х37	3	1
