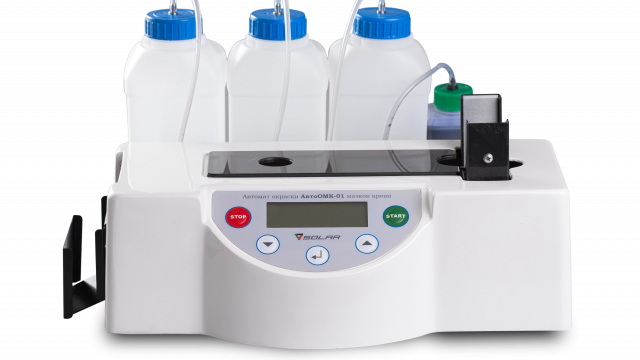

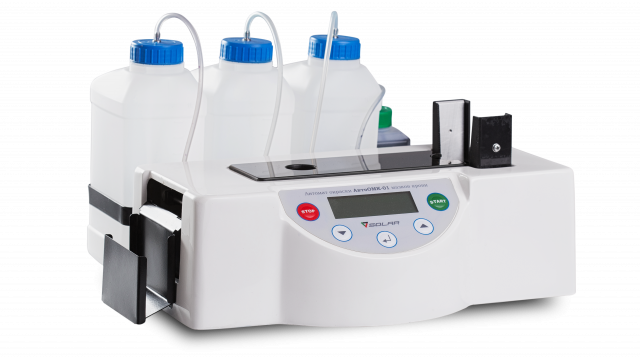

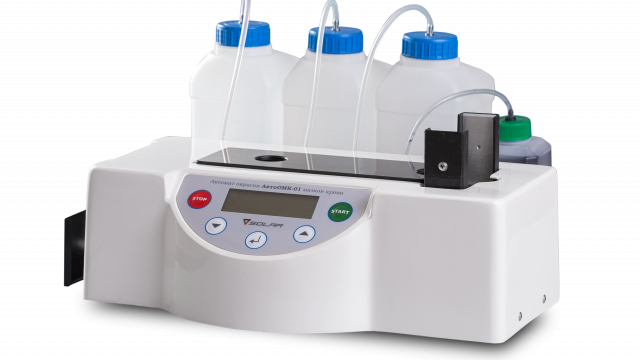

Automatic machine for coloring of blood swipes AutoOMK-01

Automatic machine for coloring of blood swipes

Model AutoOMK-01

The automatic machine of coloring of blood swipes AutoOMK-01 is used in medicine and veterinary science. Labor-intensive process of manual coloring of blood swipes becomes convenient and highly productive

  • Uniform coloring
  • Purity of workplace
  • Ready solutions for coloring and washing
  • Single loading — 25-50 glasses
  • Productivity — 60 glasses per hour
  • Possibility of additional loading
  • The notification about replacement of reactants

Uniform coloring

Automatically precisely dosed solutions provide uniform coloring of each sample up to the identical depth and distinctness

Ready solutions

Eliminates need for labor-consuming preparation working solutions

Purity

Eliminates need of labor-consuming cleaning and cleaning of workplace

Possibility of additional loading

Possibility of additional loading of samples in the course of operation of the automatic machine, without stopping the device

The notification about replacement of reactants

The machine for swipe coloring AutoOMK-01 checks amount of the painted glasses and signals about need of reactants replacement

Reactants

The automatic machine for blood swipes coloring AutoOMK-01 operates with:
  • A set of reactants "Eosine-methylene blue for automatic systems"
    1. The painting solution 225 cm3
    2. Buffer solution 100 cm3
    3. Flushing solution 100 cm3

    Set is intended for coloring of 1200 swipes of blood.
    The producer is Belarus

  • Set of reactants of Diakhim-Gema-T
    1. Clamp Mai-Grunwald 250 ml
    2. Buffer solution 500 ml
    3. Flushing solution 100 ml

    Producer is SPI Abris + (Russian Federation)

Delivery set

  • Automatic machine for coloring of blood swipes AutoOMK-01
  • Set of glasses
  • A set of reactants for coloring of blood swipes
  • Network cable
Productivity60 glasses per hour
Capacity of the loading device50 glasses of 1 mm, 25 glasses of 5 mm
Consuption (set of reagents "Eosine-methylene blue for automatic systems"): Colorant0,16 ml / 1 glass
Buffers0,4 ml / 1 glass
Flushing solution0,8 ml / 1 glass
Operating modesworking, washing, technological
Indicatorgraphic
Dimensions385 x 285 x 130 mm
Weightno more than 5 kg
Energy consumption230 (+- 10%) V, 50 Hz, 60VA
