Thermostatically controlled (37 °C) cell section with electronic magnetic agitator
It is easy-to-work
The system of hints on the built-in clotter's LCD screen during operation
Open system
Clotter "SOLAR" operates with reagents of different producers at the user's choice
Connection of the printer
Possibility connection to the printer. Printing of research results
Built-in timer
Built-in timer of sample incubation
Automatic switching on
Automatic switching on time counting at the time of reagent adding, and auto switch off at the time of the beginning fibrin polymerization. Electronic pipettes synchronized with clotter are not required
In addition
Possibility of determination fibrinogen concentration in plasma with clotting time
State registry SI of RB No. 03 25 0481 97
State registry SI of the Russian Federation No. 16412-97
State registry SI UKE of UA-MI/3p-217-2000
Defined parameters
Clotting time
Trombine time
PTT
Concentration of fibrinogen
Factors of fibrillation II, V, VII, VIII, IX, X, XI, XII
Coagulability inhibitor: anti-thrombin III
Delivery set

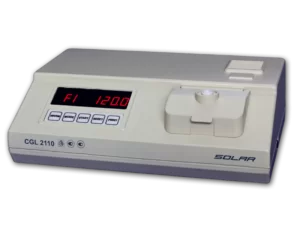

Clotter CGL2110 turbidimetric
Polystyrine one-use cells - 3000 pieces
Anchors magnetic one-use - 3000 pieces
Pippetor 100 mcl - 1 piece
Pippetor 200 mcl - 1 piece
Tips for pippetors - 1000 pieces
By the additional order
Device for samples preparation PT2110G
Printer
Polystyrine one-use cells
Magnetic one-use anchors
General pronciples
turbidimetric
Diagram of measurement
single-channel
Light source
light-emitting diode
Detector
silicon photo diode
Plasma volume for one research
0,1 ml
Termostatiing temperature
(37 ±0,5) С
Indicator
multipurpose, liquid crystal
Dimensions
335x235x125 mm
Weight
4,0 kg
Energy consumption
230 (± 10%) V, 50 Hz, 40 VA
№ 20021
№ 20022
Cell type
Optical wave length, mm
Internal dimensions, mm
Packing, pc
20021
Polystyrene round cells
Ø8х45
200
20022
Magnetic one use anchors
Ø1,8х45
200
Block of samples preparation PT2110G For preparation of samples by thermal stabilization Nominal temperature of termostating 37C ° more
Sets of the light filters KCC-003 For checking of the device Overall dimensions of the light filter in the frame is 12,5х12,5х45 mm more
