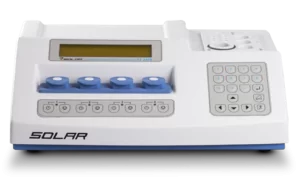

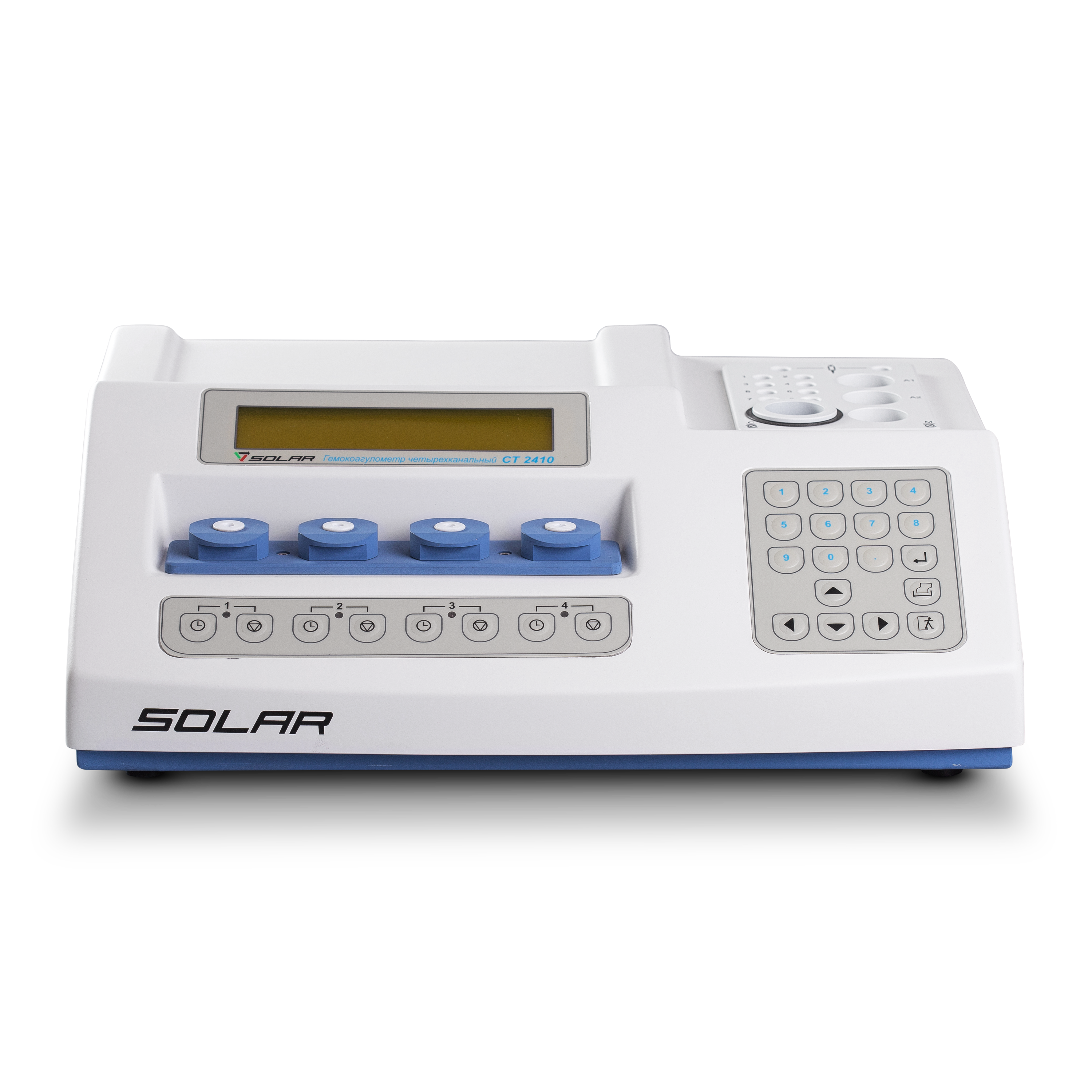

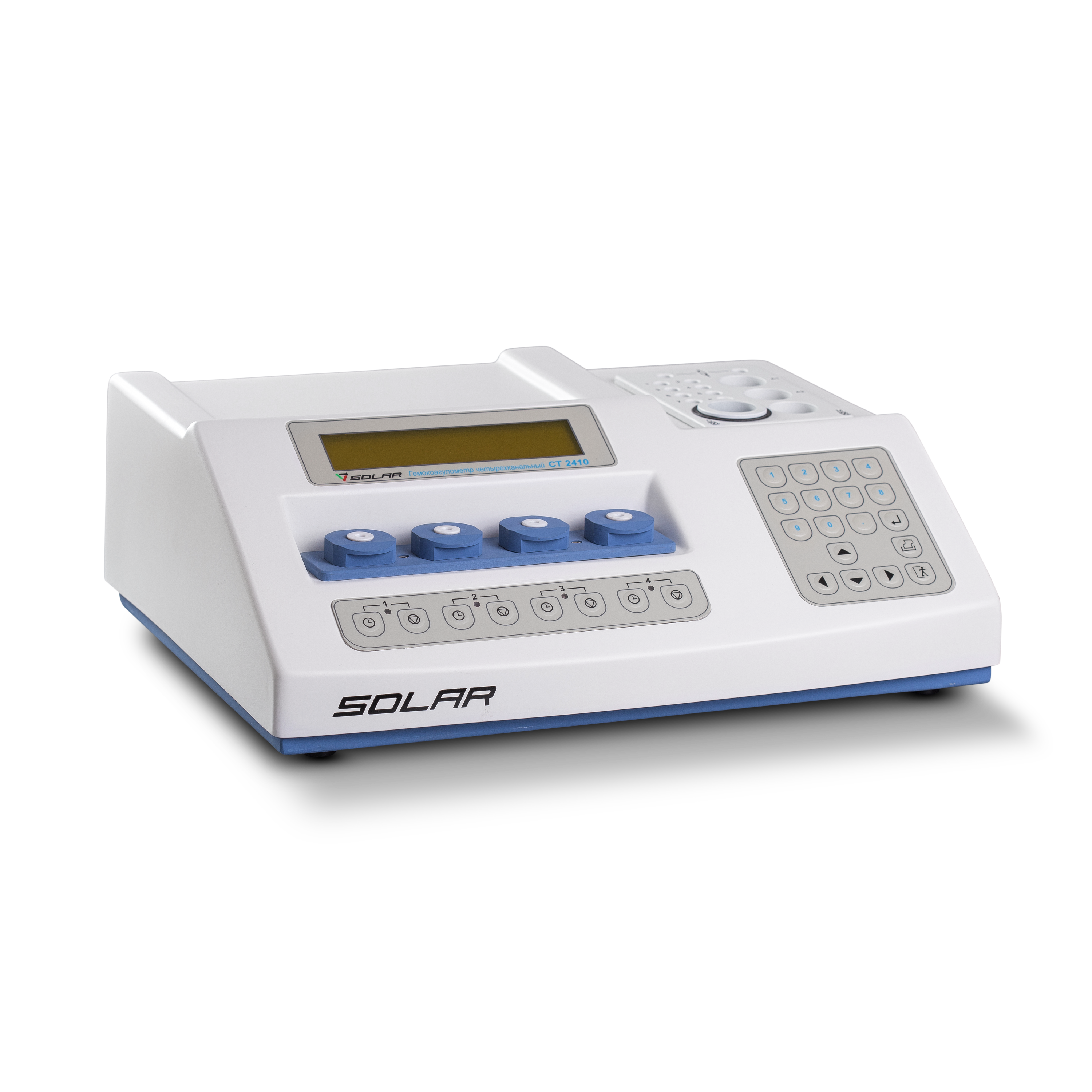

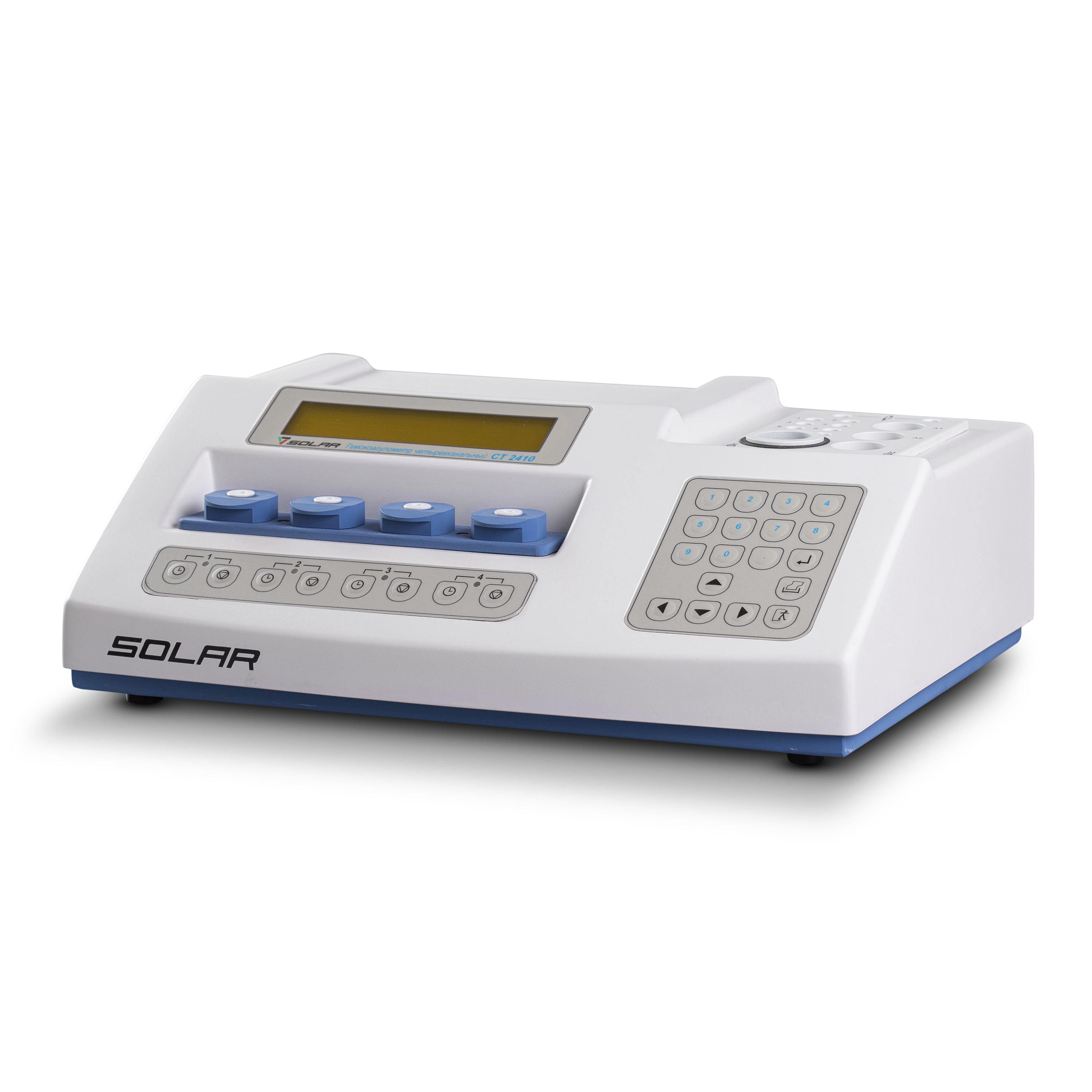

Clotter four-channel CT2410

Clotter four-channel

CT2410 model

Clotter four-channel CT2410 is intended for detection violations of fibrillation system in medical laboratories of the medium size

  • Easy-to-work
  • Operates with reagents of different producers
  • Four measurements at the same time
  • Integral unit for preparation of tests and reagents
  • Automatic switching on

Easy-to-work

The system of hints on the clotter's built-in LCD screen during operation

Open system

Clotter "SOLAR" operates with reagents of different producers at the user's choice

High productivity

Four measuring channels – four measurements at the same time

Integral unit of preparation

Integral unit of preparation samples and reagents, including 2 cells for mixing of reagents: cooled (12 °C) and thermostatically controlled (37 °C)

Built-in timer

Built-in timer of sample incubation

Automatic switching on

Automatic switching on time counting at the time of reagent adding, also automatic switch off at the time of beginning fibrin polymerization. Electronic pipettes synchronized with clotter are not required

Result of measurement

The result of measurement is provided in seconds, percent, INR units and "Ratio"

Additionally

Possibility determination fibrinogen concentration in plasma with clotting time

Connection of the printer

Possibility of connection to the printer. Printing results of research

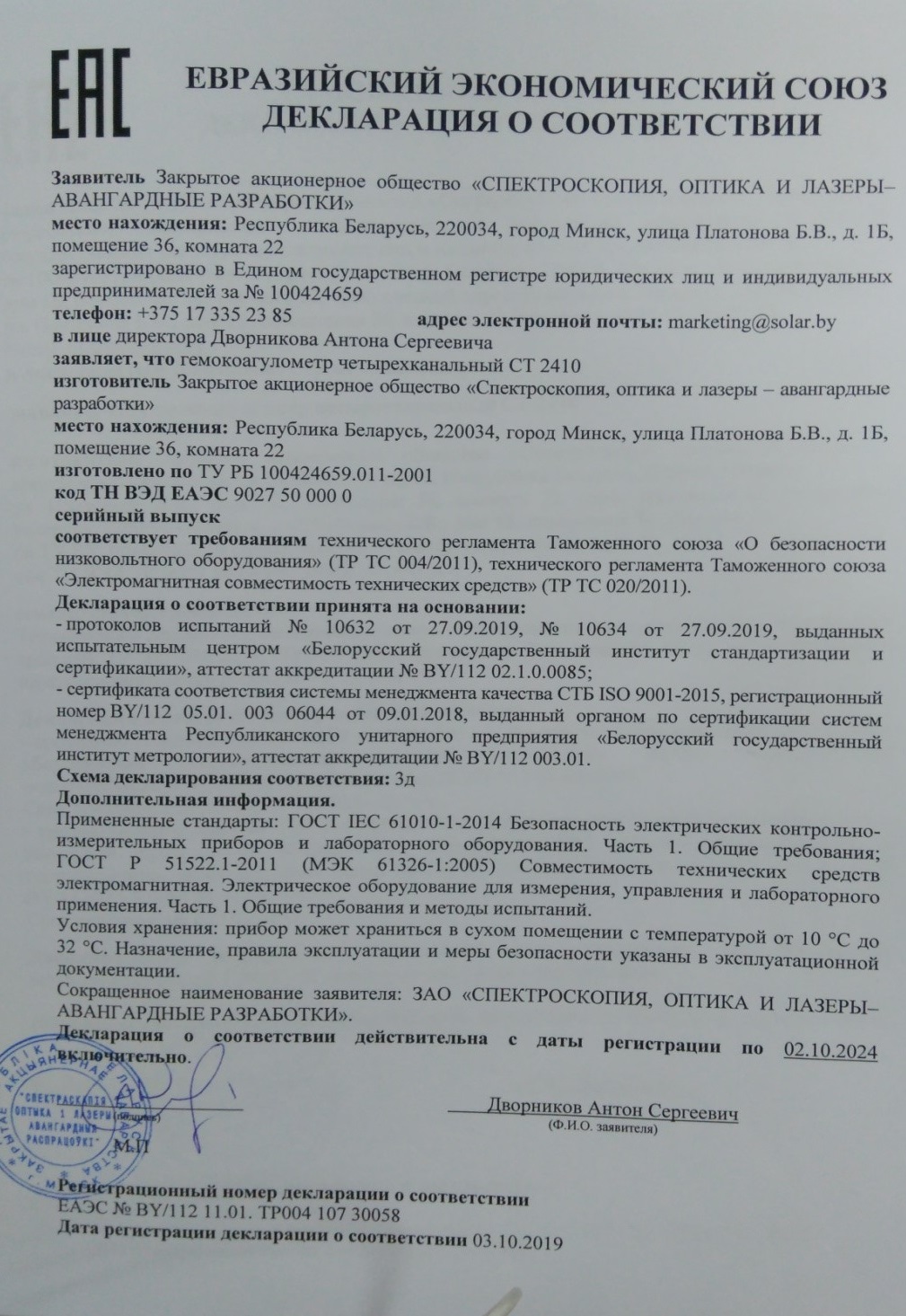

State registry SI of RB No. 03 25 1283 14
State registry SI of the Russian Federation No. 23080-02
State registry SI UKE of UA-MI/3p-352-2002

Defined parameters

  • Clotting time
  • Trombin time
  • PTT
  • Concentration of fibrinogen
  • Factors of fibrillation II, V, VII, VIII, IX, X, XI, XII
  • Coagulability inhibitor: anti-thrombin III

Delivery set

  • Clotter CT2410 four-channel
  • Polystyrine one-use cells - 3000 pieces
  • Anchors magnetic one-use - 3000 pieces
  • Pippetor 100 mcl - 1 piece
  • Pippetor 200 mcl - 1 piece
  • Tips for pippetors - 1000 pieces
By the additional order
  • Device for samples preparation PT2110G
  • Printer
  • Polystyrine one-use cells
  • Magnetic one-use anchors
General pprinciples turbidimetric
Number of channels 4 (four)
Light source light-emitting diode
Detector silicon diode
Plasma volume for one research 0,1 ml
Termostating temperature (37 +-0,5) C
Indicator multipurpose, liquid crystal
Dimensions 430x330x165 mm
Weight 9,5 kg
Energy consumption 230 (+- 10%) V, 50 Hz, 120 VA
№ 20021
№ 20022
Cell type

Optical wave length, mm

Internal dimensions, mm

Packing, pc
20021

Polystyrene round cells

 d 8х45 200
20022

Magnetic one use anchors

 d 1,8х45 200
Sets of light filters KSS-003
For checking of the device
Overall dimensions of light filter in the frame is 12,5х12,5х45 mm. More
