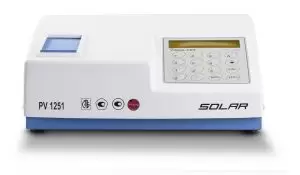

Biochemical semi-automatic analyzer PV1251C

Spectrophotometer

Model PV1251C

The spectrophotometer PV1251C is intended for application in medicine, veterinary science, biology as the semi-automatic biochemical analyzer

  • Thermostatically controlled cell section (37 °C)
  • Any modes
  • Any reagents
  • Convenient construction of cell section
  • Operates as with the computer, and autonomous
  • High accuracy of measurements

Any modes

The spectrophotometer PV1251C is open system, the user can independently select and program necessary modes (to 100 modes)

Different types of cells

It is possible to use standard cells and CPP cells (with length of optical way from 5 up to 50 mm)

Casing

From fiberglass. It is painted with chemically resistant color

Convenient at operation

The spectrophotometer "SOLAR" is convenient for working by the laboratory assistant. Convenient construction of cells separation: the cover is removed by the slider principle - it is conveniently to remove cells. It is conveniently to operate in standalone mode (without connection of the computer) thanks to the big built-in keypad and the informative LED screen where hints are displayed

Connection to the computer

Expands possibilities of mathematical processing of results, allows to process ranges, to create and save databases, etc.

Convenient software

  • High accuracy of measurements
Existence of the double monochromatic device provides the minimum level of the hindering radiation that guarantees high accuracy of measurements

Delivery set

  • Spectrophotometer PV1251C
  • Set of polystyrene one-use macro (1 ml) or semi-micro (0,4 ml) cells - 100 pieces
  • The program for operation with computer
By the additional order
  • Glass standard cells or CPP with length of optical way 5, 10, 20, 30, 50 mm
  • Polystyrene one-use cells with length of optical way 10 mm (a set of 100 pieces)
  • USB-COM adapter
  • Computer
  • Printer
State registry SI of RB No. 14324
State registry SI of the Russian Federation No. 16361-12
State registry SI UKE of UA-MI/3p-219-2000

In case of autonomous operation (without PC)

  • Measurement of optical density
  • Measurement of transmission coefficient
  • Determination of substance concentration in the researched test according to factor, to the known concentration in the standard, according to the diagram
  • Kinetic measurements
  • Measurement of concentration under one and two lengths of waves

The "Spectrum" program in case of connection to the computer (with the PC)

  • Measurement of absorption and transmission on the fixed lengths of waves
  • Measurement of absorption and transmission spectrum
  • Concentration measurement by a single-wave method, 2nd - 3rd - wave method, using:
    a) factor
    b) calibration under one point
    c) multipoint gage curve
  • Kinetic measurements on one, two, three way lengths.
  • Automatic scale setting
  • Creating databases and working with them
  • Creating, viewing and editing techniques
  • Spectrum Calculator
  • Mathematical actions and processing of spectra (addition, division, subtraction, multiplication, finding the maximum and minimum in the spectrum, finding the area under the graph, the mean square deviation, raising the spectrum into a square, etc.)
  • Work with the entire spectrum, or with a separately selected band
  • Working with the application MatLab7
Light source halogen lamp
Monochromatic device double, with diffraction grids 1200 pcs/mm
Calibration on wave length automatic at switching
Range of wave length 315 - 1100 nm
Accuracy of wavelength installation +- 1 nm
Reproducibility of installation wavelength +- 0,5 nm
The allocated spectral interval 5 nm
Diffused light no more than 0,05% of T for 340 nanometers
Detector silicon photo diode
Photometric range - 0,301... 3,000 B, 0,1...200% T
Fotometry error 1 %
Drift of indications no more than +- 0,002 B per hour
Cell section not thermostatically controlled, cells with external sizes to 52,5х12,5х45 mm, with length of optical way up to 50 mm
Display of data PC digital display / monitor
Connection to the personal computer RS232 or via the USB-COM adapter
Energy consumption 230 (+-10%) V, 50 Hz, 80 BA
Dimensions 325 x 295 x 115 mm
Weight 8,5 kg
№ 10033-10036
Кюветы КФК
№ Cell type Length of optical way , mm Spectral range, mm Internal sizes, mm Thickness of walls, mm Packing, pc
10033 Glass cells 10 From 340 nm 10х10х43 1,25 1
10034 Glass cells 20 From 340 nm 20х10х43 1,25 1
10035 Glass cells 30 From 340 nm 30х10х43 1,25 1
10036 Glass cells 50 From 340 nm 50х10х43 1,25 1
--- FCC glass cells 10 From 340 nm 10х18х37 3 1
--- FCC glass cells 20 From 340 nm 20х18х37 3 1
--- FCC glass cells 30 From 340 nm 30х18х37 3 1
--- FCC glass cells 50 From 340 nm 50х18х37 3 1
Block of samples preparation PT 2110C
For preparation of tests by thermal stabilization
Nominal temperature of thermostatics 37 °C more
Sets of light filters KCC-02 and KCC-04
For checking of the device
Overall dimensions of light filter in frame are 12,5х12,5х45 mm more
