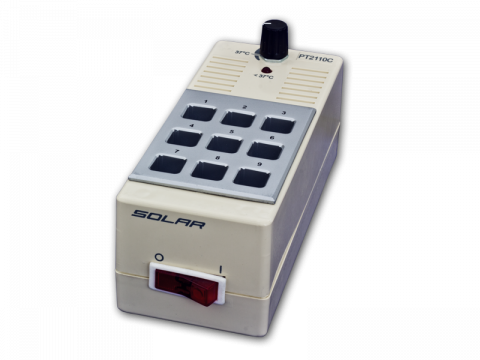

Device for samples preparation
PT2110C model
The device for samples preparation (the dry-bulb thermostat) PT2110C is intended for thermal stabilizing of cells with the researched liquid at temperature of 37C
<<<
>>>
Distinctive features
- Prepares at the same time 9 samples
- Increases productivity in case of the large volume of researches
Scope
It can be used as the additional equipment to the following devices:- PM2111 photometer
- Spectrophotometer PV1251C
- Automated photometer PA2600
- Other devices using standard cells 12,5х12,5x45 mm
State registry SI of RB No. 03 25 0081 11
State registry SI of the Russian Federation No. 16361-12
State registry SI UKE of UA-MI/3p-219-2000| Nominal temperature of a termostating | 37 °C |
| Limits of temperature ajustment from nominal rate | not less than +-1 °C |
| Stability of maintenance of the set temperature | +-0,1 °C |
| Time of operating mode access | no more than 30 min. |
| Cells | 9 pieces 12,5x12,5x45 mm |
| Dimensions | 75x80x190 mm |
| Weight | 1,5 kg |
| Energy consumption | 230 (+- 10%) V, 50 Hz, 35 VA |
-
- № 10031
-
- № 10032
-
- № 10033
| № | Cell type | Length of optical way , mm | Spectral range, mm | Internal sizes, mm | Packing, pc |
| 10031 | Polystyrene one use MACRO cells | 10 | From 34 nm | 10х10х44 | 100 |
| 10032 | Polystryrene one use SEMI MICRO cells | 10 | From 34 nm | 10х4х44 | 100 |
| 10033 | Glass cells | 10 | From 34 nm | 10х10х43 | 1 |
